Drilling & Rig Technologies
Real-Time Drilling Intelligence & Data Connectivity
Advanced drilling technologies designed to provide reliable data acquisition, real-time monitoring, and seamless data transmission across drilling operations.
MIWELL™ EDR
Electronic Drilling Recorder System
Modular • Flexible • Reliable

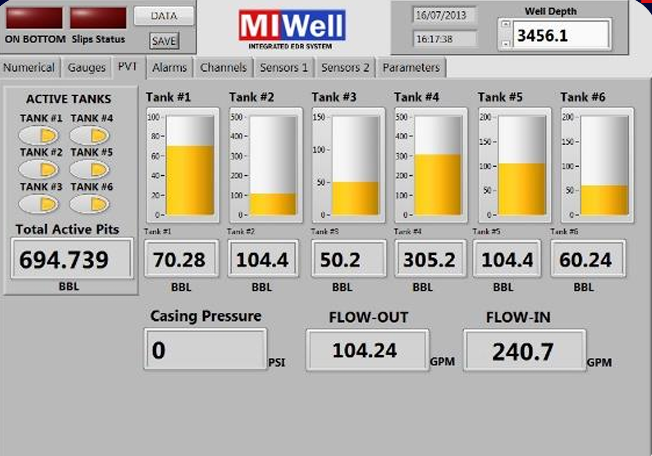

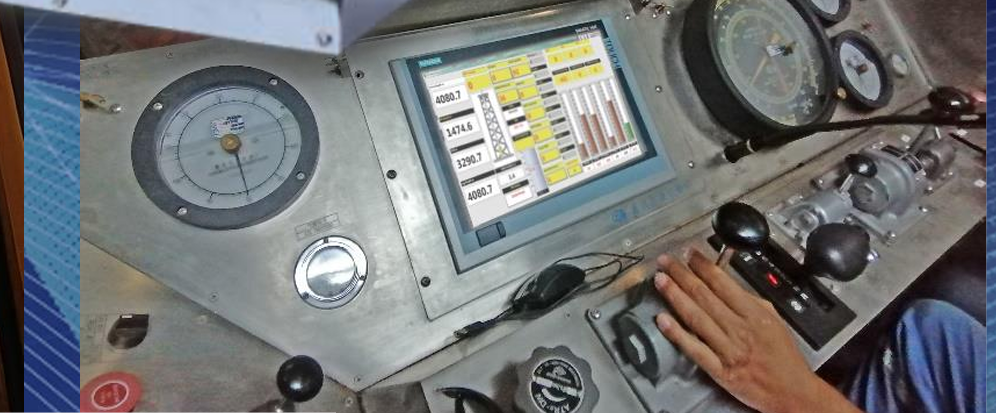

MIWELL™ EDR is a computerized Electronic Drilling Recorder System designed to acquire, monitor, and record critical drilling parameters in real time.
The system combines dedicated hardware with an easy-to-use interface and can be configured to meet different rig and operational requirements.
Key Features
- Stand-alone hardware and software
- Fully computerized and easy-to-use interface
- Touch and conventional monitor support
- Multiple monitor locations
- WITS-compatible input and output
- Analog and digital channels
- Automatic alarms and multiple alarm outputs
- Compatible with onshore and offshore rigs
- Easy installation during rig-up and rig-down
- Rugged and reliable hardware
- Hazardous-area, explosion-proof and intrinsically safe options
Drilling Parameters
MIWELL™ EDR can be configured to monitor and record:
Depth & Position
Kelly Position • Depth
Drilling Loads
Hook Load • Weight on Bit • Rotary Torque • RPM
Pressure
Standpipe Pressure • Casing Pressure
Mud System
Pump Strokes • Mud Flow In • Mud Flow Out • Mud Tank Volume • Pit Volume Totalizer
Gas Monitoring
Flammable Gas • Toxic Gas
Real-Time Data Transmission
Connected Drilling Data
MIWELL enables real-time transmission of drilling data from the rig to remote monitoring locations, providing continuous access to critical drilling parameters.
Key Capabilities
- Real-time drilling data transmission
- Remote monitoring from multiple locations
- Continuous access to drilling parameters
- Integration with MIWELL monitoring platforms
- Centralized data monitoring and analysis
- Reliable communication between rig and operations
From Rig to Remote Operations
Rig Instrumentation → MIWELL™ EDR → Real-Time Data Transmission → Remote Monitoring
